48volt lithium ion battery pack 80ah 100ah 120ah rechargeable li ion batteries LFP for high quality selling
- Warranty:
-
3years
- Application:
-
Golf Carts, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Power Systems
- Brand Name:
-
QSPOWER
- Model Number:
-
QS-48-120
- Place of Origin:
-
guangdong
- The discharge rate:
-
3c
- Battery type:
-
Lithium Iron Phosphate
- Material:
-
Lithium Chemistry
- Name:
-
EV lithium ion battery pack 60v
- Keywords:
-
Electric batteries
- Cycle life:
-
2000-5000 Times
- Cell:
-
LFP Prismatic Cells 200ah
- Features:
-
Small Size High Capacity
- Connector:
-
Customer Request
- OEM:
-
Acceptble
- BMS:
-
Built-in
48volt lithium ion battery pack 80ah 100ah 120ah rechargeable li ion batteries LFP for high quality selling
48v 120ah lithium ion lifepo4 rechargeble battery pack datasheet
|
No. |
Items |
Specifications |
|
1 |
Nominal Voltage |
51.2v |
|
2 |
Nominal Capacity |
120Ah |
|
3 |
Cell Inside |
Lifepo4 3.2V |
|
4 |
Configuration |
16S |
|
5 |
Standard Charge Current |
24A(0.2C) |
|
6 |
Max. Charge Current |
120A(1C) |
|
7 |
Battery management System (BMS) |
BMS-JBD16S100 |
|
8 |
Continuous Discharge Current |
90A |
|
9 |
Peak Discharge Current |
180A |
|
10 |
Full Charged Voltage |
58.4V(3.65V per cell) |
|
11 |
Charge Cut-off Voltage |
62.4V (3.9V per cell) |
|
12 |
Discharge Cut-off Voltage |
32V (2.0V per cell) |
|
13 |
Net Weight |
55Kg |
|
14 |
Dimensions |
440x430x85mm customize |
|
15 |
Connector |
Input: customized |
|
Output:customized |
||
|
16 |
Operating Temperature |
Charging: 0°C ~ 45°C |
|
17 |
Storage Temperature |
(Recommended to store 20 ± 5°C for long term storage) |
|
18 |
Cycle Life |
2000 times (80% of initial capacity at 0.2C rate, IEC Standard) |
LFP battery48V 80AH
LIFEPO4 battery pack 48V 100AH
lipo4 battery pack 60V 80AH
Phosphate battery pack 60V 100AH.72v 100ah or customized
|
LFP Battery Specification |
||
|
4880 |
Model |
QSLP4880 |
|
Rated voltage |
48V |
|
|
Rated capacity |
80Ah/3.84Kwh |
|
|
Cell dimension |
23*130*255mm |
|
|
Weight |
45Kg |
|
|
Pack dimension |
560*255*232mm |
|
|
48100 |
Model |
QSLP48100 |
|
Rated voltage |
48V |
|
|
Rated capacity |
100Ah/4.8Kwh |
|
|
Cell dimension |
23*130*255mm |
|
|
Weight |
48Kg |
|
|
Pack dimension |
560*255*232mm |
|
|
6080 |
Model |
QSLP6080 |
|
Rated voltage |
60V |
|
|
Rated capacity |
80Ah/4.8Kwh |
|
|
Cell dimension |
23*130*255mm |
|
|
Voltage range |
47.5V~68.4V |
|
|
Max. output current |
160A |
|
|
Weight |
57Kg |
|
|
Pack dimension |
720*255*232mm |
|
|
60100 |
Model |
QSLP60100 |
|
Rated voltage |
60V |
|
|
Rated capacity |
100Ah/6Kwh |
|
|
Cell dimension |
23*130*255mm |
|
|
Voltage range |
47.5V~68.4V |
|
|
Max. output current |
200A |
|
|
Weight |
60Kg |
|
|
Pack dimension |
560*255*232mm |
|

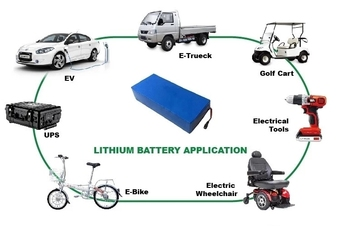

Related lipo4 battery packfor solar enegery storage home application
EV : Golf trolleys , Electric scooters .Electric Bike ,Electric tricyle ,Electric Motor.
Solar System,Wind Energy Storage,Solar/Storage Home System, Solar Street Light.
Rechargeable li -ion battery Product Advantage
makes it more practical in portable consumer electronic devices in which physical specifications such as weight and form factor
are considered important selling points.
2. High energy density: Li-ion battery has higher energy density than other rechargeable batteries. This means having high power
capacity without being too bulky. This is suitable for use in power-hungry devices such as laptops and smartphones. Advancements
in technology open potential for higher capacities.
3. Low self-discharge: Li-ion battery also has a low self-discharge rate of about 1.5 percent per month. This means that the
battery has a longer shelf life when not in used because it discharges slowly than other rechargeable batteries. Take note that
nickel-metal hydride battery has a self-discharge of 20 percent per month.
4. Zero to low memory effect: Li-ion battery has zero to minimal memory effect. Take note than memory effect is a phenomenon
observed in rechargeable batteries in which they lose their maximum energy capacity when repeated recharged after being only
partially discharged. This memory effect is common in nickel-metal hydride rechargeable batteries such as NiCd and NiMH.
5. Quick charging: Li-ion battery is quicker to charge than other rechargeable batteries. It actually takes a fraction of a time
to charge when compared to counterparts.
6. High open-circuit voltage: Li-ion battery has a chemistry that results in higher open-circuit voltage than other aqueous
batteries such as lead acid, nickel-metal hydride, and nickel-cadmium.
7. Longer lifespan: Li-ion battery can typically handle hundreds of charge-discharge cycles. Some lithium ion batteries loss 30
percent of their capacity after 1000 cycles while more advanced lithium ion batteries still have better capacity only after 5000
cycles.
