China Cargo Tricyle Electric With 1000kg Loading Capacity

Short Description:

-

Product Detail

Information

Product Tags

Overview
Quick Details
Use For:
Cargo
Driving Type:
Electric
Body Type:
Open
Certification:
CCC
Power:
> 800W
Voltage:
60V
Brand Name:
QSD
Place of Origin:
Hebei, China
Size:
3100mm*1200mm* 1300mm
Product name:
1t electric cargo loader
carrier size:
1.7m*1.2m*0.425m
Motor:
60v 1000w
Controller:
30 mos tube
Max loading capacity:
1t
Max speed:
40km/h
Climbing ability:
20 degree angle
Brake:
two rear brake drums
Parking brake:
include
Shock absorber:
dia 43mm shock absorber and 6 layers leaf springs
Electric Loader

China Cargo Tricyle Battery Electric Powered

To meet the requirement of 1 ton loading capacity from customers our R&D department finished this model.
Welcome customers from Africa placing order.

Driving Type
Battery powered BLDC motor and differential driving
Motor:
60v 1500w BLDC motor
Controller:
30 mos tubes controller
Rear axle
Rigid rear axle with brake drum
Charge Voltage:
60v
Charging time
8-10 hours
Top Speed (km/h) :
40km/h
Continued trip mileage:
40km ( It all depends on the battery capacity)
Climbing ability
20 degree angle
Brake distance
3.5m
Windshield,roof and curtain
N/A
Spare tire
N/A
Front Wheel Size
4.00-16
Rear Wheel Size:
4.00-16
Brake type:
Footbrake by rear two brake drums.Provide parking brake as well.
Ground Clearence :
25cm
Dimension:
3100mm*1200mm*1300mm
N.W( kg without battery) :
220kg
Max load capacity:
1ton
No of passenger (including driver):
N/A
Battery type:
60v 45ah lead acid battery.
Battery Quantity:
5 pieces of 12v 45ah lead acid battery group
Charger
60v charger
Container QTY
35sets/40"HQ container
Detailed Images

Function Buttons On The Right Handle Switch

Here are headlight on&off button, driving forward and backward buttons and three level speed level control button.

Function Buttons On the Left Handle Switch

Here are indicators control buttons, turning horn buttons

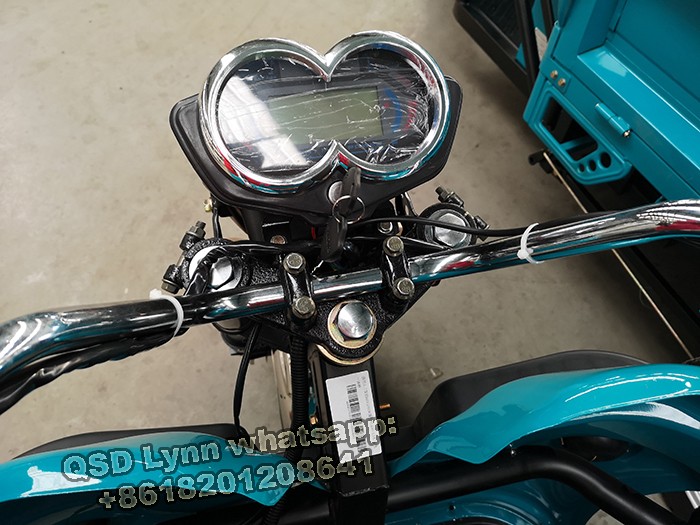

LCD Speedometer

We use digital speedometer for helping the driving decide the driving speed.

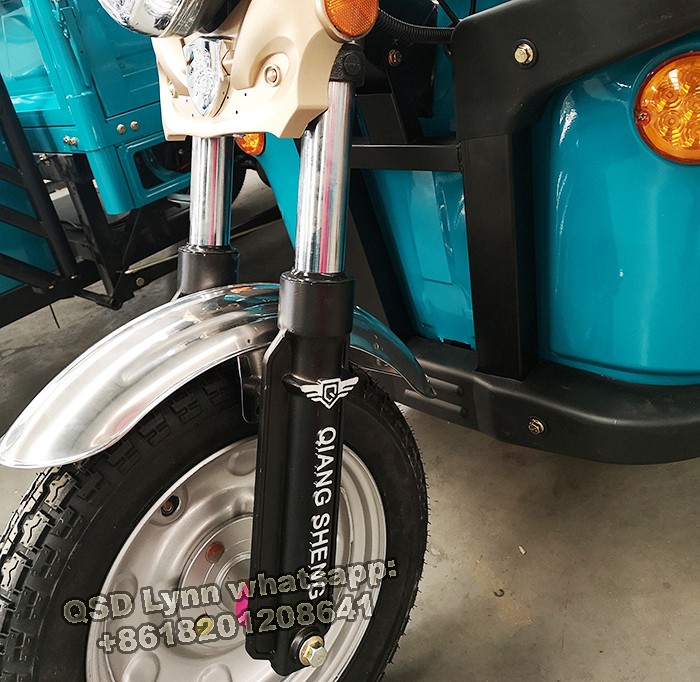

Strong Front Bumper and Shock Absorber

Apart from the windshield plate we arrange front bumper as well for safer driving environment . High quality diameter 43mm oil shock absorber can easyly deal with the hard braking



Footbrake, Handbrake and Speed Shift

Two rear drum brakes footbrake design make our tricycle has a sensetive brake ability. Handbrake make sure that the vehicle is parking stable after stop. Speed shift funtion make the vehicle have better climbing capacity.

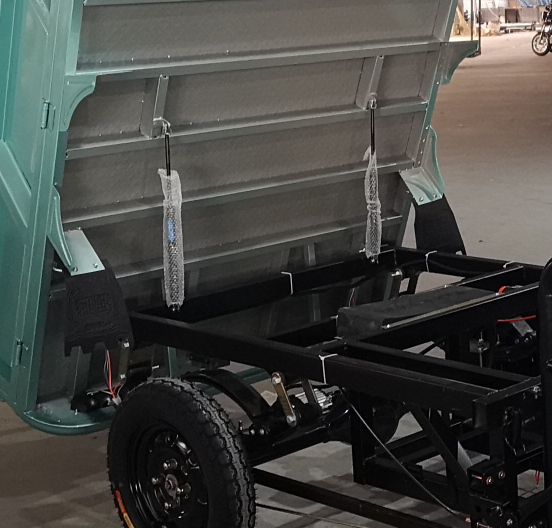

Two hydraulic bars for lifting

Considering of the 1 ton loading capacity of this model , we make two hydraulic bars design. This can help the 1 ton cargo unloading easily.


Packing & Delivery

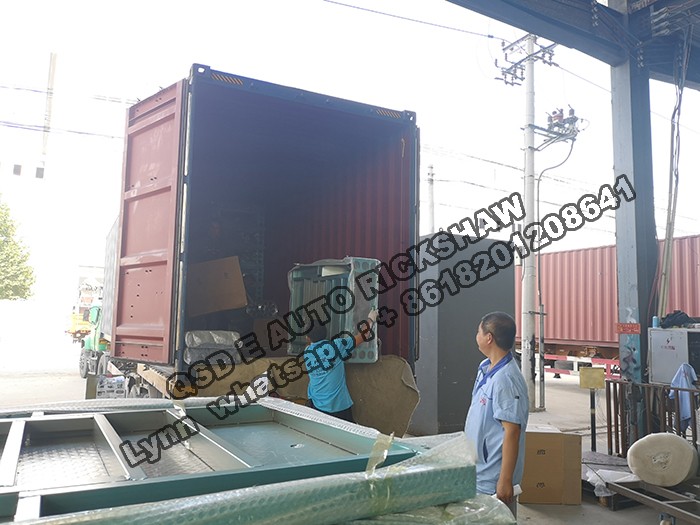

CKD packing in containers

CKD packing in containers is the most cost effective method for reductiong the transportation cost( for inland and sea) and custom tariff as well.

Sample packing

We can arrange sample packing for specifical request from customers but it is much more cost than average cost of bulk order.

Certifications

CCC certificate for electric tricycle

All of our 3 wheelers have CCC certificate and got ICAT and ARAI certificate from abroad.


Our Service

Guarantee and after sale service

We give our customers abroad a 6 months motor and controller guarantee. Meanwhile there will be a 1% to 2% easy wearing parts together with the order as well. With the 7 years exporting experience we have rich experience for serving customers for product updating and maintaince.

Welcome to contact us.

I’m Lynn whatsapp +8618201208641



  • Previous:
  • Next:

  •

    网站详情_01

    Company informatio

    网站详情_03

    Qiangsheng Group is founded in 2005,Located in Xianghe county(Beijing-Tianjing corridor).


    It is a professionl enterprise that specializing in electric tricycle R&D,production,sales,trading and spare parts service.
    Our factory covers an area of 50,000 square meters,owns the most advanced production line and detection equipment,professional
    welding workshops,machining workshops,electrophoresis painting workshops and assembly workshops.





    网站详情_04

    Our electric tricycle have awarded numbers of patents:Double rear axle,Multifunctional shed,Gearbox,Electic insulation box,Movable seat,Folding seat,Etc.We are awarded Chinese

    famous brand,Consumers Trust products,CCTV Brand as well.We have built stable supplying

    relationship inSouth Asia,Southeast Asia,Middle East Asia,Africa,South America.

    网站详情_05
    Company Name:Xianghe Qiangsheng Electric Tricycle Factory

    Operational Address:Qianwang Industry Park, Xianghe County, Langfang, Hebei, China

    PCCKING

    CKD reduce the sea freight of a single vehicle , save the transportation cost

    factory1_08

    SERVICE

    24-hour online servic

    We will send customers a video to show them how to assemble an electric tricycle for cargo or passenger.

    Any questions are welcome

    网站详情_08

    FAQ

    1.Q: Where is your company located? How can I visit there?
    A: Our factory is located in Xianghe county (Beijing- Tianjin corridor), Hebei province, China. Welcome to visit us, the nearest
    airport is Beijing capital international airport, and we will arrange customer pickup.
    2.Q: What’s the MOQ?
    A: Our economic order quantity is a 20′ GP amount. Sample and LCL shipment accepted, but cost much higher.
    3.Q: What is the payment terms?
    A: T/T is our preference. 30% as deposit, and 70% before delivery. Photos of the products and packages will be sent to you before
    you pay the balance.
    4.Q: What’s the delivery time?
    A: Mostly we don’t have products in stock, it will take about 15-20 days to finish an order generally speaking.
    5.Q:What is your shipping terms?
    A: EXW, FOB, CIF.
    6.Q: What certificate do you have?
    A: We can apply any certificate under your require if the order QTY is OK.
    7.Q: Do you test all your goods before delivery?
    A: Definitely! 100% test before delivery by professional test line is necessary to us.
    8.Q: How do you make our business long-term and good relationship?
    A: We keep good quality and competitive price to ensure our customers benefit, and we respect every customer as friend doing business with them sincerely, no matter where they come from.
