LIFEPO4 Prismatic cells
Voltage :3.2v
Capacity :50ah 60ah 86ah 100ah 200ah 280ah
Application for :EV and solar storage systems
Cycle life 2000times more.3 ye
ars warrantyGrade A quality for selling
Rechargeable lithium ion battery pack for electric rickshaw/e scooters /motorcycle
Overview
Quick Details
- Warranty:
-
3years, 3years
- Application:
-
Golf Carts, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Power Systems
- Brand Name:
-
QSPOWER
- Model Number:
-
QS-48-80
- Place of Origin:
-
guangdong
- Weight:
-
55kg
- The discharge rate:
-
3c
- Battery type:
-
Lithium Iron Phosphate
- Material:
-
Lithium Chemistry
- Name:
-
lithium ion battery pack 60v
- Keywords:
-
Electric batteries lithium
- Cycle life:
-
2000-5000 Times
- Cell:
-
cylinder cells lifepo4
- Features:
-
Small Size High Capacity
- Connector:
-
Customer Request
- OEM/ODM:
-
Accepatable
Product Description

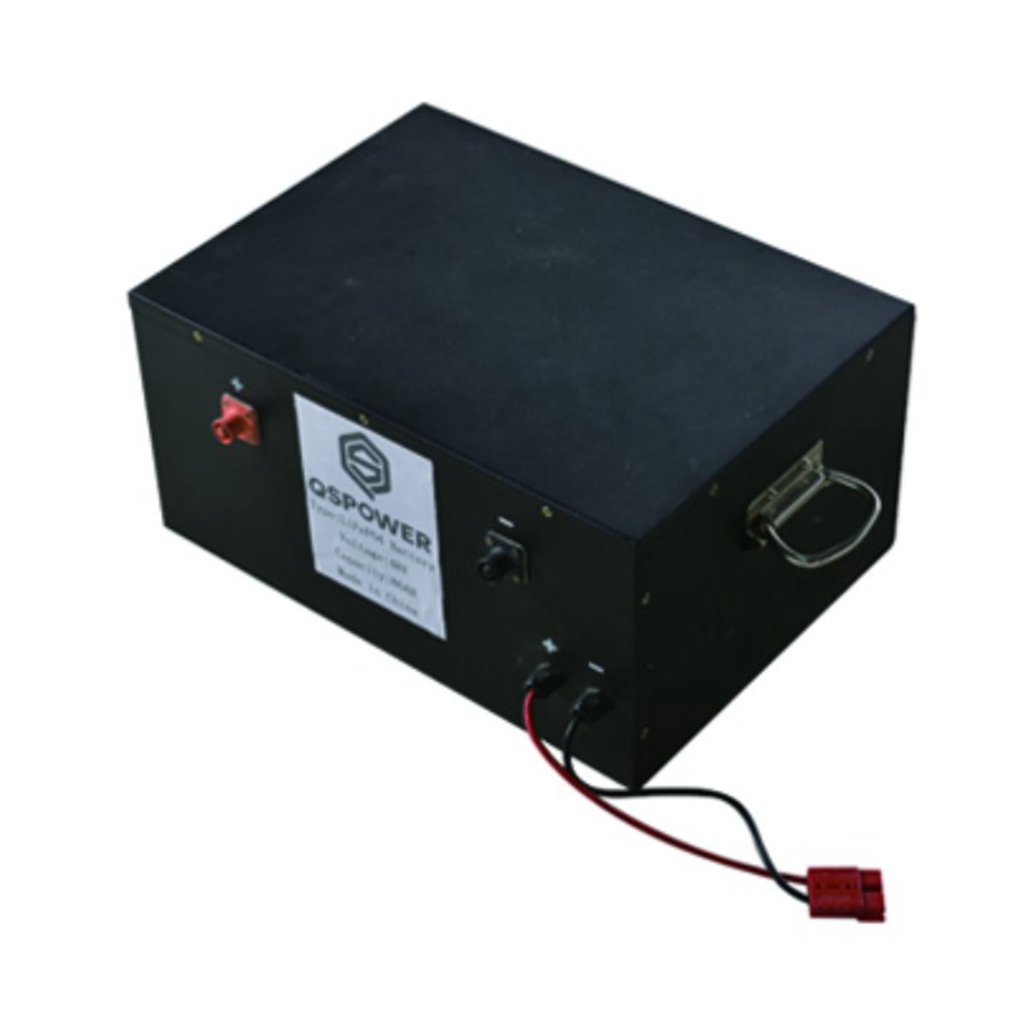

Rechargeable lithium ion battery pack for electric rickshaw/e scooters /motorcycle
51.2v 120ah lithium ion battery for electric rickshaw adult
|
No.
|
Items
|
Specifications
|
|
1
|
Nominal Voltage
|
51.2v
|
|
2
|
Nominal Capacity
|
120Ah
|
|
3
|
Cell Inside
|
Lifepo4 3.2V
|
|
4
|
Configuration
|
16S
|
|
5
|
Standard Charge Current
|
24A(0.2C)
|
|
6
|
Max. Charge Current
|
120A(1C)
|
|
7
|
Battery management System (BMS)
|
BMS-JBD16S100
|
|
8
|
Continuous Discharge Current
|
90A
|
|
9
|
Peak Discharge Current
|
180A
|
|
10
|
Full Charged Voltage
|
58.4V(3.65V per cell)
|
|
11
|
Charge Cut-off Voltage
|
62.4V (3.9V per cell)
|
|
12
|
Discharge Cut-off Voltage
|
32V (2.0V per cell)
|
|
13
|
Net Weight
|
55Kg
|
|
14
|
Dimensions
|
440x430x85mm customize
|
|
15
|
Connector
|
Input: customized
|
|
Output:customized
|
||
|
16
|
Operating Temperature
|
Charging: 0°C ~ 45°C
Discharging: -20°C ~ 55°C |
|
17
|
Storage Temperature
|
(Recommended to store 20 ± 5°C for long term storage)
|
|
18
|
Cycle Life
|
2000 times (80% of initial capacity at 0.2C rate, IEC Standard)
|
Rechargeable li -ion battery Product Advantage
1. Smaller and lighter: Li-ion battery is lighter than other rechargeable batteries in consideration of battery capacity. This makes it more practical in portable consumer electronic devices in which physical specifications such as weight and form factor are considered important selling points.
1. Smaller and lighter: Li-ion battery is lighter than other rechargeable batteries in consideration of battery capacity. This makes it more practical in portable consumer electronic devices in which physical specifications such as weight and form factor are considered important selling points.
2. High energy density: Li-ion battery has higher energy density than other rechargeable batteries. This means having high power capacity without being too bulky. This is suitable for use in power-hungry devices such as laptops and smartphones. Advancements n technology open potential for higher capacities.
3. Low self-discharge: Li-ion battery also has a low self-discharge rate of about 1.5 percent per month. This means that the battery has a longer shelf life when not in used because it discharges slowly than other rechargeable batteries. Take note that nickel-metal hydride battery has a self-discharge of 20 percent per month.
4. Zero to low memory effect: Li-ion battery has zero to minimal memory effect. Take note than memory effect is a phenomenon observed in rechargeable batteries in which they lose their maximum energy capacity when repeated recharged after being only partially discharged. This memory effect is common in nickel-metal hydride rechargeable batteries suchNiCd and NiMH.
5. Quick charging: Li-ion battery is quicker to charge than other rechargeable batteries. It actually takes a fraction of a time to charge when compared to counterparts.
6. High open-circuit voltage: Li-ion battery has a chemistry that results in higher open-circuit voltage than other aqueous batteries such as lead acid, nickel-metal hydride, and nickel-cadmium.
7. Longer lifespan: Li-ion battery can typically handle hundreds of charge-discharge cycles. Some lithium ion batteries loss 30 percent of their capacity after 1000 cycles while more advanced lithium ion batteries still have better capacity only after 5000 cycles.
Lithium ion battery application for
a.EV : Golf trolleys , Electric scooters .Electric Bike ,Electric tricyle ,Electric Motor.
b.Solar System,Wind Energy Storage,Solar/Storage Home System, Solar Street Light.
b.Solar System,Wind Energy Storage,Solar/Storage Home System, Solar Street Light
Related Products
1.
LIFEPO4 Prismatic cells
Grade A quality for selling
LIFEPO4 Prismatic cells
Grade A quality for selling
Title goes here.
lithium ion cylinder shape cells
a.18650 NCM 2000/2500/2600mah
b.LFP cells
18650 2000mah
26650 3000mah .3400mah
32650 6000mah
2.EV lithium ion battery pack
48v 80ah
48v 100ah
60v 80ah
60v 100ah
We can do customized EV batteries!
|
Electric rickshaw /electric scooterss/electric motorcycle LFP Battery Specification
|
||||
|
4880
|
Model
|
QSLP4880
|
||
|
Rated voltage
|
48V
|
|||
|
Rated capacity
|
80Ah/3.84Kwh
|
|||
|
Cell dimension
|
23*130*255mm
|
|||
|
Weight
|
45Kg
|
|||
|
Pack dimension
|
560*255*232mm
|
|||
|
48100
|
Model
|
QSLP48100
|
||
|
Rated voltage
|
48V
|
|||
|
Rated capacity
|
100Ah/4.8Kwh
|
|||
|
Cell dimension
|
23*130*255mm
|
|||
|
Weight
|
48Kg
|
|||
|
Pack dimension
|
560*255*232mm
|
|||
|
6080
|
Model
|
QSLP6080
|
||
|
Rated voltage
|
60V
|
|||
|
Rated capacity
|
80Ah/4.8Kwh
|
|||
|
Cell dimension
|
23*130*255mm
|
|||
|
Voltage range
|
47.5V~68.4V
|
|||
|
Max. output current
|
160A
|
|||
|
Weight
|
57Kg
|
|||
|
Pack dimension
|
720*255*232mm
|
|||
|
60100
|
Model
|
QSLP60100
|
||
|
Rated voltage
|
60V
|
|||
|
Rated capacity
|
100Ah/6Kwh
|
|||
|
Cell dimension
|
23*130*255mm
|
|||
|
Voltage range
|
47.5V~68.4V
|
|||
|
Max. output current
|
200A
|
|||
|
Weight
|
60Kg
|
|||
|
Pack dimension
|
560*255*232mm
|
|||
Our Factory Introduction
QSPOWER Co.,LTD was founded in 2018 belonging to Qiangsheng Goup(UK) Co.,Ltd which focus on green energy products since 2012.
QSPOWER has the strong technique support group which has the well-known expert from America and Taiwan. QSPOWER has extensive experience with every facet of the design and manufacturing process of batteries.
QSPOWER focus on Green energy solution, such as lithium battery technique R&D, battery testing, battery cell supplying chain, battery packing and customized green energy solution project.
QSPOWER has the experienced engineers and resources to help ensure a smooth design process and project management to meet delivery schedules. We are willing
Our service
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.
Detection:
We have advanced equipment. “Quality is our culture”.
We focus on provide the highest quality products to our customers
Our Team:
We trust our technology, our price, quality and after service will let us to be your good business partner and give yoan edge to over your competitors.
Company informatio
Qiangsheng Group is founded in 2005,Located in Xianghe county(Beijing-Tianjing corridor).
It is a professionl enterprise that specializing in electric tricycle R&D,production,sales,trading and spare parts service.
Our factory covers an area of 50,000 square meters,owns the most advanced production line and detection equipment,professional welding workshops,machining workshops,electrophoresis painting workshops and assembly workshops.
Our electric tricycle have awarded numbers of patents:Double rear axle,Multifunctional shed,Gearbox,Electic insulation box,Movable seat,Folding seat,Etc.We are awarded Chinese
famous brand,Consumers Trust products,CCTV Brand as well.We have built stable supplying
relationship inSouth Asia,Southeast Asia,Middle East Asia,Africa,South America.
Company Name:Xianghe Qiangsheng Electric Tricycle Factory
Operational Address:Qianwang Industry Park, Xianghe County, Langfang, Hebei, China
PCCKING
CKD reduce the sea freight of a single vehicle ， save the transportation cost
SERVICE
24-hour online servic
We will send customers a video to show them how to assemble an electric tricycle for cargo or passenger.
Any questions are welcome
FAQ
1.Q: Where is your company located? How can I visit there?
A: Our factory is located in Xianghe county (Beijing- Tianjin corridor), Hebei province, China. Welcome to visit us, the nearest
airport is Beijing capital international airport, and we will arrange customer pickup.
2.Q: What’s the MOQ?
A: Our economic order quantity is a 20′ GP amount. Sample and LCL shipment accepted, but cost much higher.
3.Q: What is the payment terms?
A: T/T is our preference. 30% as deposit, and 70% before delivery. Photos of the products and packages will be sent to you before
you pay the balance.
4.Q: What’s the delivery time?
A: Mostly we don’t have products in stock, it will take about 15-20 days to finish an order generally speaking.
5.Q:What is your shipping terms?
A: EXW, FOB, CIF.
6.Q: What certificate do you have?
A: We can apply any certificate under your require if the order QTY is OK.
7.Q: Do you test all your goods before delivery?
A: Definitely! 100% test before delivery by professional test line is necessary to us.
8.Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit, and we respect every customer as friend doing business with them sincerely, no matter where they come from.
